JW-202A CNC Coil Winding Machine |
|
| |
 |
 |
 |
| |
| |
POWER |
AC110V / 220V 50 / 60 HZ |
| |
MAIN MOTOR |
DC90 / 180V |
| |
SPREAD |
Stepping Motor |
| |
PITCH |
0.001-9.999mm |
| |
MEMORY |
999 Step |
| |
WIRE SIZE |
Ø 0.06 - Ø 2mm |
| |
R.P.M. |
1600 rpm max |
| |
SPREAD RANGE |
0-100mm |
| |
WINDING DIA. |
180 mm |
| |
WEIGHT |
28 Kgs |
| |
DIMENSION |
420(W)*300(L)*400(H)mm |
| |
|
550(W)*630(L)*650(H)mm |
|
|
|
 |
| |
 |
 |
|
| |
| |
| |
|

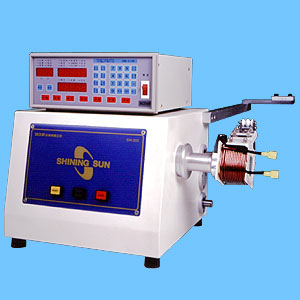

JW-202D CNC Large Torsion Winding Machine |
|
| |
|
|
|
| |
|
|
 |
|
| |
| |
POWER |
AC110V / 220V 50 / 60 HZ |
| |
MAIN MOTOR |
DC90 / 180V |
| |
SPREAD |
Stepping Motor |
| |
PITCH |
0.001-9.99mm |
| |
MEMORY |
999 Step |
| |
WIRE SIZE |
Ø 0.1 - Ø 3mm |
| |
R.P.M. |
220 rpm max |
| |
SPREAD RANGE |
0-100mm |
| |
WINDING DIA. |
200 mm |
| |
WEIGHT |
57 Kgs |
| |
DIMENSION |
420(W)*300(L)*420(H)mm |
| |
|
550(W)*750(L)*420(H)mm |
|
|
|
|
| |
|
|
|
|
| |
| |
|
 |
|
