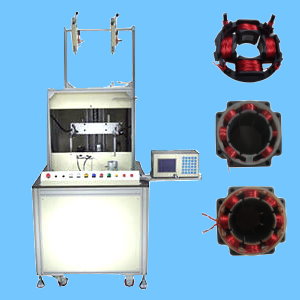

JW-802 Internal Two
Spindles Winding Machine |
|
| |
 |
 |
 |
| |
| |
POWER |
AC 220V 50 / 60 HZ |
| |
MAIN MOTOR |
Servo Motor |
| |
CONTROLLER |
Servo Controller |
| |
WIRE SIZE |
Ø 0.1~1.5mm |
| |
SPINDLES |
Two Spindles |
| |
AIR SUPPLY |
5 Kg
/ Cm2 |
| |
STATOR
OUTSIDE DIAMETER |
Ø 110mm max |
| |
STATOR
INSIDE DIAMETER |
Ø 15mm min |
| |
THICKNESS |
Ø 0.4~3.0mm |
| |
DIMENSION |
140(W)*950(D)*1620(H)mm |
|
|
|
 |
| |
 |
 |
|
| |
|
 |
|
