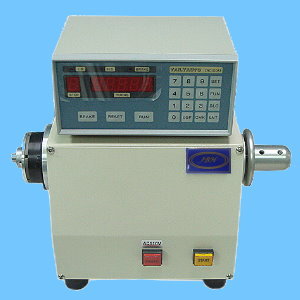

  JW-101H Single Spindle Winding Machine


  POWER AC110V / 220V 50 / 60 HZ
  MAIN MOTOR DC Motor 90 / 180V
  MEMORY 30 Step
  WIRE SIZE Ø 0.4mm
  R.P.M. 1800 rpm max
  WINDING DIA. 200 mm
  WEIGHT 16 Kg
  OPTIONAL ALL

Single Taping Device

Natural Aligning Device
  DIMENSION 360(W)*230(L)*300(H)mm
    520(W)*460(L)*550(H)mm

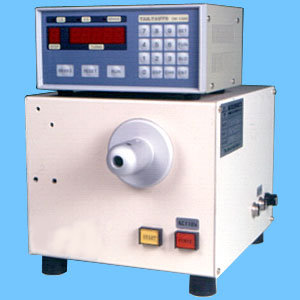

  JW-302H  Single Spindle Winding Machine


  POWER AC110V / 220V 50 / 60 HZ
  MAIN MOTOR DC Motor 90 / 180V
  MEMORY 30 Step
  WIRE SIZE Ø 0.06~1mm
  R.P.M. 1800 rpm max
  WINDING DIA. 200 mm
  WEIGHT 26 Kg
  OPTIONAL ALL

Single Taping Device

Natural Aligning Device
  DIMENSION 420(W)*300(L)*400(H)mm
    550(W)*630(L)*650(H)mm
