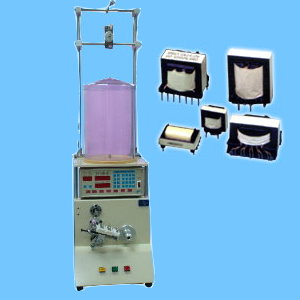

JW-501 CNC Single Spindle Winding Machine |
|
| |
 |
 |
 |
| |
| |
POWER |
AC110V / 220V 50 / 60 HZ |
| |
MAIN MOTOR |
DC90 / 180V |
| |
SPREAD |
Stepping Motor |
| |
PITCH |
0.001-9.999mm |
| |
MEMORY |
999 Step |
| |
WIRE SIZE |
Ø 0.06 - Ø 2mm |
| |
R.P.M. |
1600 rpm max |
| |
SPREAD RANGE |
0-100mm |
| |
WINDING DIA. |
250 mm |
| |
WEIGHT |
45 Kgs |
| |
DIMENSION |
340(W)*500(L)*1080(H)mm |
| |
|
740(W)*520(L)*720(H)mm |
|
|
|
 |
| |
 |
 |
|
| |
| |
| |
|

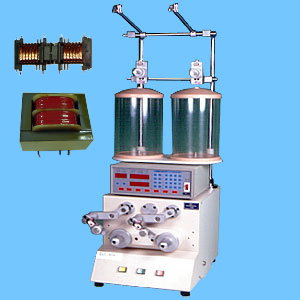

JW-502 CNC Two Spindle Winding Machine |
|
| |
|
|
|
| |
|
|
 |
|
| |
| |
POWER |
AC110V / 220V 50 / 60 HZ |
| |
MAIN MOTOR |
DC90 / 180V |
| |
SPREAD |
Stepping Motor |
| |
PITCH |
0.001-9.999mm |
| |
MEMORY |
999 Step |
| |
WIRE SIZE |
Ø 0.02 - Ø 0.8mm |
| |
SPREAD RANGE |
0-100mm |
| |
WINDING DIA. |
140 mm |
| |
WEIGHT |
47 Kgs |
| |
DIMENSION |
380(W)*500(L)*460(H)mm |
| |
|
380(W)*500(L)*980(H)mm |
|
|
|
|
| |
|
|
|
|
| |
| |
|
 |
|
